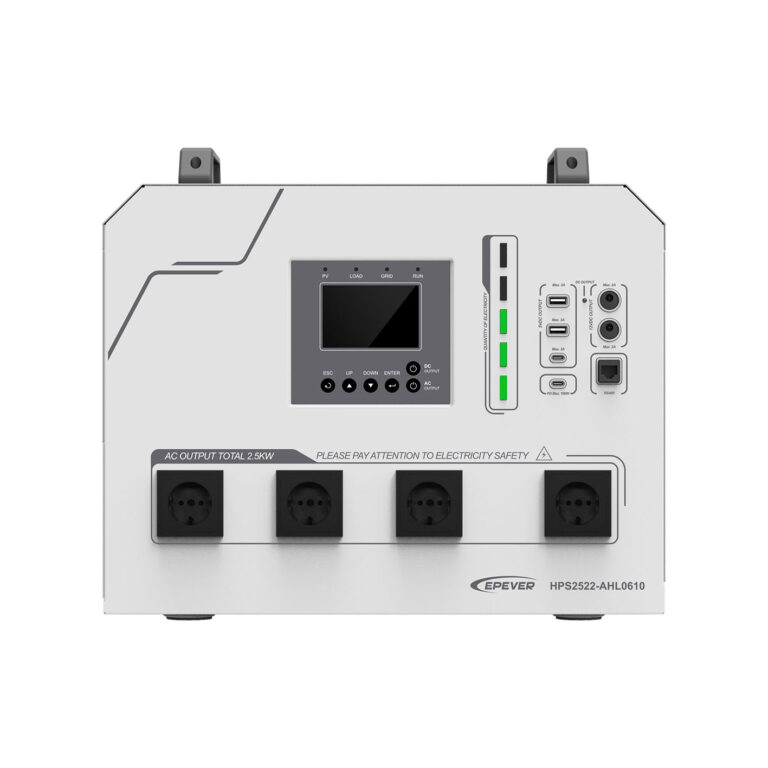

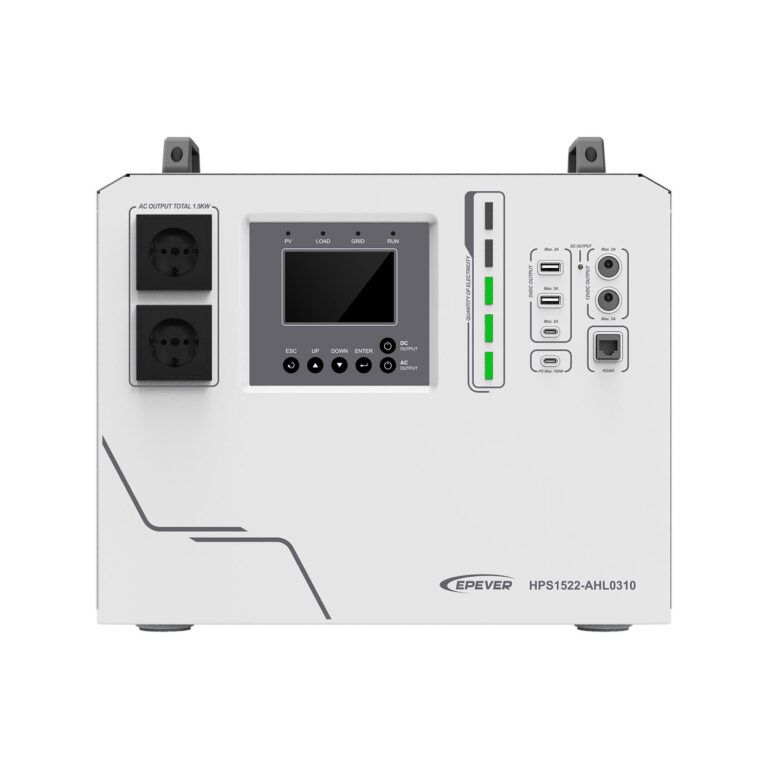

Epever Home Battery Backup HPS-AHL Series(1000~2500W)
Epever Home Battery Backup HPS-AHL Series(1000~2500W)
Epever Home Battery Backup HPS-AHL Series(1000~2500W)

Epever Home Battery Backup

HPS-AHL Series (1000~2500W)

The HPS-AHL Series is a smart and flexible home battery backup system designed to keep your home powered—day and night. With a built-in long-life LiFePO₄ lithium battery, it stores solar energy and supports charging from solar panels, utility grid, or even a generator.

Available in 220V and 120V models, it works across multiple regions and supports a variety of plug types, including EU, UK, US, AU, ZA, BR, and China standards. Whether you’re in Europe, America, or Asia, you’ll find the right version for your local power system.

With fast solar charging, pure sine wave output, and multiple DC outputs including USB-C for fast device charging, the HPS-AHL delivers clean, reliable power for your essentials—whether it’s a fridge, laptop, or home lights.

Simple to use, safe to operate, and built for real-life needs, it’s the perfect solution for emergencies, solar power storage, or just peace of mind when the grid goes down.

Epever Home Battery Backup HPS-AHL Series

✅️ Excellent dust-proof performance with separate compartment design.
✅️ Built-in LiFePO4 lithium battery.
✅️ Intuitive display of battery SOC via 5-bar indicator lights.
✅️ Multiple DC output ports (5VDC/3A ports, 12VDC/2A ports, Type C ports).
✅️ Build-in bluetooth module.
✅️ Large-sized LCD screen to monitor and modify system parameters.
✅️ Optional 4G or WiFi module to remote control the inverter/charger by the RS485 com. port
✅️ AC input overload relay for disconnecting from the grid when the fault occurs.

✅️ Circuit breaker on PV input for equipment safety
✅️ Circuit breaker on battery output for battery safety.
✅️ AC charging with PFC technology, high power factor for efficient energy consumption.
✅️ Bidirectional high-frequency transformer isolation topology.
✅️ Advanced MPPT technology: maximum tracking efficiency≥99.5%.
✅️ EMC design on AC output to avoid interference with AC load.
✅️ Long-term continuous operation at full power.
✅️ Pure sine wave output.
✅️ Comprehensive electronic protection.

Technical Data Specification

Model HPS1022-AHL0210 HPS1522-AHL0310 HPS2522-AHL0610 HPS1021-AHL0210 HPS1521-AHL0310 HPS2521-AHL0610
Utility Input
Rated Voltage 220VAC 120VAC
Recommended Input Voltage 200VAC–240VAC 90VAC–140VAC
Failure Voltage 290VAC —-
Utility Frequency 50Hz/60Hz
Max. Work Current (Charging plus Bypass) 7A @220VAC 10A @220VAC 15A @220VAC 15A @120VAC
Switch Response Time Switch Response Time-Utility to Inverter: ≤20ms; Switch Response Time-Inverter to Utility: ≤20ms
AC Input Overload Relay HAVE
Inverter Output
Rated Power (@25℃) 1,000W 1,500W 2,500W 1,000W 1,500W 2,500W
4-second Transient Surge Output Power 1,800W 2,700W 4,500W 1,800W 2,700W 4,500W
Output Voltage 220VAC ± 3% 120VAC ± 3%
Inverter Frequency 50Hz/60Hz ± 0.2% 60Hz/50Hz ± 0.2%
Output Voltage Waveform Pure sine wave
Output Voltage Harmonic Distortion Rate ≤ 3% (Resistive load) ≤ 5% (Resistive load)
Output Gradual Start Supported
Solar Controller
Max. Input Withstand Voltage 95VDC @25℃
Solar Controller Type MPPT
MPPT Max. Efficiency ≥ 99.5%
MPPT Voltage Range 24VDC–76VDC
MPPT Input Channels One way
Max. Charging Current 20A 30A 60A 20A 30A 60A
Battery
Battery Type LFP8S2P LFP8S3P LFP8S1P LFP8S2P LFP8S3P LFP8S1P
Battery Rated Capacity 40Ah 60Ah 102Ah 40Ah 60Ah 102Ah
Cell Dimension (mm) Diameter: 40.0 +0.5/- 0; Height: 136.25 ±0.5 Length: 160.0 ± 0.8 Height: 118.5 ± 0.5 Width: 50.1 ± 0.5 Diameter: 40.0 +0.5/- 0; Height: 136.25 ±0.5 Length: 160.0 ± 0.8 Height: 118.5 ± 0.5 Width: 50.1 ± 0.5
Battery Rated Voltage 25.6VDC
Max. Continuous Charging Current 1C
Max. Continuous Discharging Current 1.8C 1.8C 1C 1.8C 1.8C 1C
Battery Work Voltage Range 21.0VDC–30.0VDC
Battery Work Temperature Range Discharging Mode: -20℃ to 50℃ Charging Mode: 0℃ to 50℃
Cycle Times 2,000 times 5,000 times 2,000 times 5,000 times
DC Output
12V DC Output (*2) 12V⎓ 2A, Max. 24W/port, Total 48W
USB-A Output (*2) 5V⎓ 3A, Max. 15W/port, Total 30W
USB-C Output (*1) 5V⎓ 3A, Max. 15W
USB-C Output (*1) 5/9/12/15V⎓ 3A, 20V⎓ 5A, Max. 100W
DC Output Switch HAVE
Others
Work Temperature Range -20℃ to 50℃
Enclosure IP30
Communication Method Bluetooth, RS485 (WiFi optional)
LCD Monochrome LCD, English interface
Warranty Two years
Dimension (L × W × H)(mm) 385 × 307 × 345 385 × 307 × 345 427 × 325.4 × 368 385 × 307 × 345 385 × 307 × 345 427 × 325.4 × 368
Net Weight 20.0kg 24.0kg 37.0kg 20.0kg 24.0kg 37.0kg
